Download Pro-face Remote HMI Free 1.00.100 free on android

Pro-face Remote HMI lets operators check the state of HMI screens remotely.

Pro-face Remote HMI Free software allows operators to check status of HMI screens on multiple applications remotely,

and assist HMI operation as a sub-display of HMI unit connected with Smartphone and Tablet.

- Quick 3 steps to use Pro-face Remote HMI Free

1. Prepare Wireless Router and connect to GP4000.

2. Adjust GP application in GP-Pro EX and transfer it to GP4000.

3. Download and install Pro-face Remote HMI Free in Smartphone and Tablet.

Application:

- Monitoring Anywhere of Large/Long Equipment

Using the remote monitoring and operation functions,

actions that previously required multiple staff for a large-sized machine or long-distance application can be easily accomplished by fewer operators.

- Troubleshooting before running to troubled machine

You can confirm possible causes of errors to prepare for necessary actions and tools before running down to the point of the problem.

- Efficiently and effectively monitor machines on the factory floor

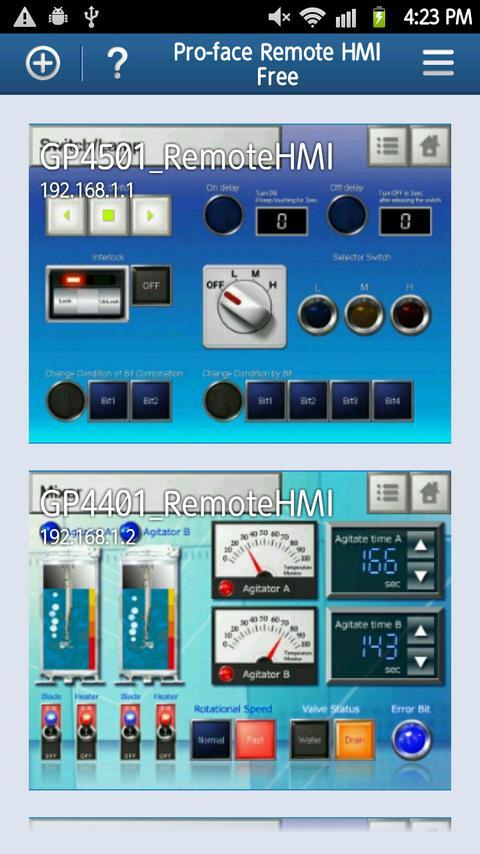

Pro-face Remote HMI Free allows you to check machines and equipment for alarms, operating status,

and other information using iPhone, iPad and iPod touch from anywhere on the factory floor.

Features:

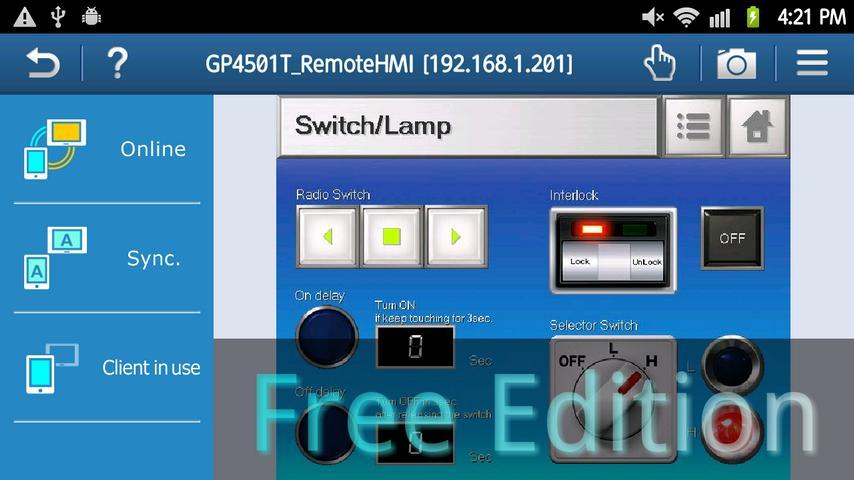

- Touch Exclusive Control

Setting the monopolize touch function prevents unexpected operational misuses caused by redundant operation.

Operation is re-enabled a preset time after Pro-face Remote HMI Free or the GP unit on the equipment has been operated.

- Remote Status Icon

A local operator can check the status of remote connection and touch monopoly of HMI server or remote client on a HMI screen for safer operation.

- Screen Shortcut

Images or texts of machines to monitor can be registered as shortcuts to easily jump from one HMI to another among multiple applications,

for various working environments, such as in an office or manufacturing site.

- Limitation

- Supported HMI Editor for HMI Server: GP-Pro EX Ver. 3.1 or later

- The following shows the models ("Server") that can use the 'Pro-face Remote HMI Free' function.

- GP-4200 series *1 *2

- GP-4300 series *1

- GP-4400 series

- GP-4500 series

- GP-4600 series

*1 Except GP4*01TM series

*2 Except models which have no LAN port.

- Text and picture for which Blink is set in the server are not displayed in blinking in the client.

- Reverse Display in 16 Level Monochrome color mode is not supported.

- Available for 30 days only.

- Synchronous mode only.
